Horizontal CNC Turning Center

  • Description: Twin Turret CNC Horizontal Turning Center – 4- Axis: OSP-P200LA/CRT CNC Control, 4-Axis, Swing: 20.87″, SOSC: 14.96″, Max. Mch. Dia: 14.56″, Centers: 23.62″, X-Travel (Upper/Lower): 10.24″/5.11″, Z- Travel Upper/Lower): 25.2″/24.21″
  • Precision: + / – 0.007 mm
  • Manufacturer / PN: OKUMA LU-300-2SC
_

Vertical CNC Machining Center – 5 Axis

  • Description: LEADWELL V-30IT 5-Axis Vertical CNC Machining Center – Fanuc Series 0I-MF/CRT CNC, X: 31.5″, Y: 18.1″, Z: 15.2″, 20 HP, 40-12,000 RPM, 24 ATC, Work Area Size: 11.8″ x 17.7″, Table/Work Piece Size: 8.07″ Diameter x 10″ Height, Rotary Tabletop to Spindle Nose 3.78″ to 19″
  • Precision: + / – 0.007 mm
  • Manufacturer / PN: LEADWELL V-30IT 5-Axis
_

Vertical CNC Machining Center – 3 Axis

  • Description: HAAS SUPER MINI-MILL 3-Axis Vertical Machining Center – Haas CNC /CRT, 4-Axis, Table Size: 28.75″x12″, Table Load: 500 Lbs, Travels: X:16″, Y: 12″, Z: 10″, 10 Station Automatic Toolchanger
  • Precision: + / – 0.01 mm
  • Manufacturer / PN: HAAS SUPER MINI-MILL 3-Axis
_

Laser Marking Marking Machine

  • Description: TELESIS FQ50 Laser Marking Marking Machine – Compliance: CDRH, CE, CSA, UL; Wavelength: 1,060nm; Laser Type: Q-Switched Ytterbium Fiber Laser; Average Power FQ50/30/20/10: 50/30/20/10W; Peak Power FQ10: >4kW; Peak Power FQ50/30/20: >8kW; Beam Quality FQ50/30/20/10: M2 < 2
  • Precision: + / – 0.1 mm
  • Manufacturer / PN: TELESIS FQ50
_

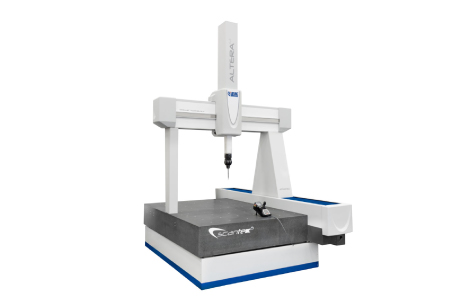

Coordinate Measuring Machine (CMM)

  • Description: 2000 LK G90C Coordinate Measuring Machine – Dell CNC w/LK Software, Renishaw Probe Model: PH10M Motorized, X:31.914″ ,Y:27.974″, Z:24.034″
  • Precision: + / – 0.0013 mm
  • Manufacturer / PN: 2000 LK G90C
_

Horizontal Turning Center CITIZEN

  • Description: horizontal Turning Center CITIZEN B12 VIN – CNC Fanuc 18 TC. 5 turning tools, 3 live cross tools and 4 front/back I.D. tools. Spindle rotation: 7000 RPM, Sub spindle rotation RPM,
    with LUB 12 barloader. Machining diameter: 3-12 mm, Maximum, Machining length: 135 mm, Bar storage capacity:3.81 m.
  • Precision: + / – 0,002 mm
  • Manufacturer / PN:  CITIZEN B12 VIN 5-Axis
_

Horizontal Turning Center TSUGAMI BS20

  • Description: horizontal turning center TSUGAMI BS20(B)-II – CNC Fanuc LH1. 6 turning tools, 4 live cross tools and 4 front/3 back I.D. tools. With IEMCA BOSS 432 barloader. Spindle rotation: 8000 RPM, Sub spindle rotation 7000 RPM, Machining diameter: 3-20 mm, Maximum, Machining length: 210 mm,  Bar storage capacity:3.2 m.
  • Precision: + / – 0,002 mm
  • Manufacturer / PN: TSUGAMI BS20(B)-II- 5-Axis
